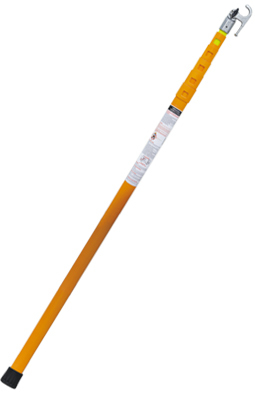

FEATURES
- Triangular-shaped design keeps sections aligned during extension and retraction
- Push button release for stick extension and retraction
- Telescopic design allows for easy assembly, storage and transportation
- Lower push button fix position for better support of the telescopic hot stick
- Withstands voltage rating of 100kV from 30cm for 5 minutes
- Universal end fitting accepts a wide variety of standard attachments
- High-visibility yellow tip section
- Easy-to-replace sections
- Carrying bag included
- Optional integrated height measurement scale
SPECIFICATIONS
|
HS-180-3 |
HS-180-4 |
HS-180-5 |
HS-180-6 |
HS-180-7 |
HS-180-8 |
HS-180-9 |
Ranges |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
Extended
length (m) |
2.59 |
3.56 |
4.63 |
5.78 |
7.03 |
8.37 |
9.72 |
Retracted
length (m) |
1.18 |
1.32 |
1.46 |
1.60 |
1.74 |
1.89 |
1.94 |
Stick width (mm) |
37.80 |
41.60 |
45.50 |
49.50 |
53.60 |
57.50 |
61.50 |
Weight (kg) |
1.40 |
1.91 |
2.44 |
3.20 |
4.12 |
5.20 |
6.20 |
