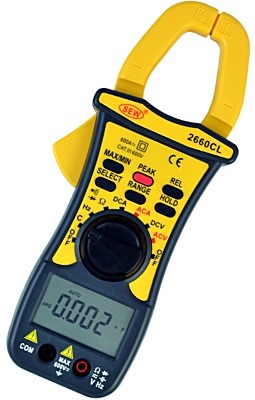

2660 CL
FEATURES
- 4000 counts.
- Voltage measurement, current measurement, resistor measurement, frequency counter, capacitor measurement.
- Bargraph indication.
- Range change function.
- Data hold function freezes the reading.
- REL function.
- Peak function.
- Diode measurement.
- Max / Min function.
- Continuity check.
- Low battery indication.
- Auto Power Off (APO) function.
- Safety design throughout with no exposed metal parts, shielded banana plugs and recessed input terminals.
SPECIFICATIONS
DC Voltage
Overload protection : 650V DC
| Ranges | Resolution | Accuracy |
|---|---|---|
| 400mV | 0.1mV | ±(1.0%rdg+3dgt) |
| 4V | 1mV | |
| 40V | 10mV | |
| 400V | 100mV | |
| 600V | 1V |
AC Voltage
*Overload protection : 650V AC rms
*Frequency Response
- 0~400mV at 40Hz~120Hz
- 4V~600V at 40Hz~500Hz
| Ranges | Resolution | Accuracy |
|---|---|---|
| 400mV | 0.1mV | ±(0.5%rdg+3dgt) |
| 4V | 1mV | ±(1.5%rdg+3dgt) |
| 40V | 10mV | |
| 400V | 100mV | |
| 600V | 1V |
AC Current
Frequency Response: 40Hz~500Hz
| Ranges | Resolution | Accuracy |
|---|---|---|
| 400A | 0.1A | ±(1.5%rdg+4dgt) |
| 600A | 1A | ±(2.0%rdg+4dgt) |
DC Current
| Ranges | Resolution | Accuracy |
|---|---|---|
| 400A | 0.1A | ±(1.5%rdg+4dgt) |
| 600A | 1A | ±(2.0%rdg+4dgt) |
Resistance
| Ranges | Resolution | Accuracy |
|---|---|---|
| 400Ω | 0.1Ω | ±(1.5%rdg+3dgt) |
| 4kΩ | 1Ω | |
| 40kΩ | 10Ω | |
| 400kΩ | 100Ω | |
| 4MΩ | 1kΩ | |
| 40MΩ | 10kΩ | ±(2.0%rdg+4dgt) |
Continuity
| Ranges | Audible threshold |
|---|---|
| 400Ω | Less than 35Ω |
Frequency
| Ranges | Resolution | Accuracy |
|---|---|---|
| 4kHz | 1Hz | ±(0.3%rdg+2dgt) |
| 15kHz | 10Hz |
Diode:
| Ranges | Resolution | Accuracy |
|---|---|---|
| 2V | 1mV | ±(1.5%rdg+3dgt) |
Capacitor
| Ranges | Resolution | Accuracy |
|---|---|---|
| 4nF | 1pF | ±(2.5%rdg+4dgt) |
| 40nF | 10pF | ±(2.0%rdg+4dgt) |
| 400nF | 100pF | |
| 4µF | 1nF | |
| 40µF | 10nF | |
| 400µF | 100nF | ±(2.5%rdg+4dgt) |
| 4mF | 1µF | |
| 40mF | 10µF | ±(3.0%rdg+4dgt) |
GENERAL
| Conductor size | 35mm Max. |
|---|---|
| Operating principle | Dual slope integration |
| Over range indication | "O.L" indicated |
| Low battery indication | |
| Response time | Approx. 1 second |
| Sample rate | Approx. 2 times per second |
| Temperature & humidity for guaranteed | 0ºC to 50ºC 80% Max. |
| Storage temperature & humidity | -10ºC to 60ºC 80% Max. |
| Battery life | Approx.100 hours on continuous use. (Alkaline) |
| Dimensions | 210(L) × 90(W) × 40(D)mm |
| Weight (battery Included) |
Approx. 330g |
| Power source | One type 6F22 (or equivalent), 9V manganese |
| Safety standard | EN 61010-1 CAT III 600V EN 61326-1 |
