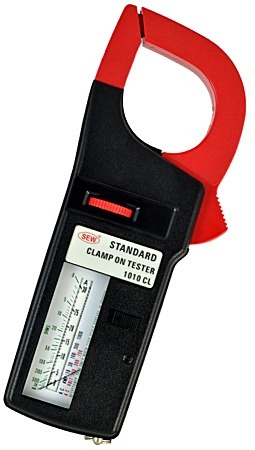

1010 CL
FEATURES
- Rotary scale which presents only one scale in windows at one time to avoid any possible reading errors.
- Pointer lock function freezes the reading in dimly lit or hard to reach places.
- Ω range ideal for checking the continuity or relays, transformers and motor coils.
- TAUT BAND movement.
SPECIFICATIONS
| AC A | 10 / 30 / 100 / 300 / 1000A ±3% of F.S.(50/60Hz) |
|---|---|
| AC V | 150 / 300 / 750V ±3% of F.S. |
| DC V | ── |
| Ω | 2kΩ ±3% of Scale length |
| Frequency response | 50 / 60Hz for ACA 10A 50-400Hz for ACA 30 / 100 / 300 / 1000A |
| Dimensions | 227(L) × 73(W) × 33(D)mm |
| Conductor size | 52mm Max. |
| Weight (battery Included) |
Approx. 460g |
