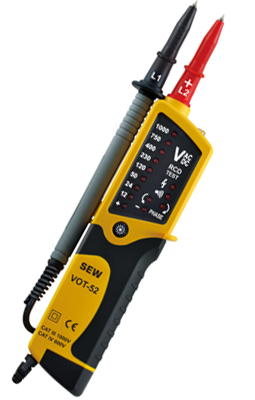

VOT-52

Voltage test: 12V to 1000V AC/DC (8 LEDs) with indication by buzzer.
Voltage range: 12V, 24V, 50V, 120V, 230V, 400V, 750V, 1000V.
Test leads positioned at 19mm apart.
Interchangeable probe tip for 2mm and 4mm.
Polarity test : LED +/-
Audible continuity test.
Phase rotation test : /
Self-test button to ensure proper function of the device prior to testing.
Waterproof design, protection class: IP65.
Phase / Neutral identification.
Rubberized double-molded housing.
ELCB / RCD trip test.
Flashlight function.
Safety standard :
- IEC/EN 61010-1 III 1000V
- IEC/EN 61010-1 IV 600V
- IEC/EN 61243-3
- EN 61326-1

Voltage test	12V to 1000V AC/DC
Voltage range	12V, 24V, 50V, 120V, 230V, 400V, 750V, 1000V
Working frequency	40 ~ 65 Hz
Voltage protection	1100V AC / DC
Continuity range	< 200kΩ
Phase rotation test range	100V~1000V measure between 2 phases, instrument in hand
Operating temperature	0℃ to 40℃
Operating humidity	80% R.H. Max.
Probe distance	19mm apart
Power source	1.5V (AAA) x 2
Dimensions	248(L) x 68(W) x 34(D)mm
Weight (battery included)	Approx. 215g
Safety standard	IEC/EN 61010-1 CAT III 1000V / CAT IV 600V IEC/EN 61243-3 EN 61326-1
