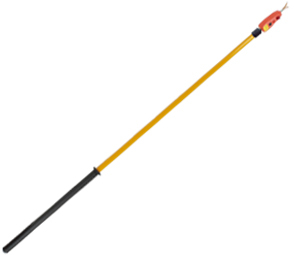

230 HD

Datasheet print icon-img

FEATURES

  • Telescopic, compact, lightweight.
  • High voltage detection.
  • Self test button feature.
  • Angle adjustment for voltage detection (rotatable)
  • Easy to recognize indication
  • High intensity red light emitting diode and intermittent audible sound for easy recognition in full sunlight and noisy environments.
  • Waterproof.

SPECIFICATIONS

  230 HD 290 HD
Withstand voltage
(On insulating rod)
100kV / 300mm : 1 minutes
Insulation resistance 2000MΩ min by 1kV / DC megger at the same testing location as withstand voltage
Leakage current 100uA or less than 100uA at withstand voltage test
Construction Water proof (detecting head impervious to water)
Measuring voltage range 6kV~36.5kV 6kV~81.5kV
Operation start voltage (To ground) 2.7kV 2.7kV
Display Light : Flashing red light.
Sound : Intermittent sound 50 dB apart 3 m.
Frequency 50/60Hz
Operating temperature 0°C ~ 55°C
Battery 2 button-cells LR44(1.5V)
Overall length Retracted 893±50mm 1370±50mm
Extracted 1520±50mm 2450±50mm
Weight (battery included) Approx. 485g Approx. 590g
Safety standards IEC / EN 61243-1
