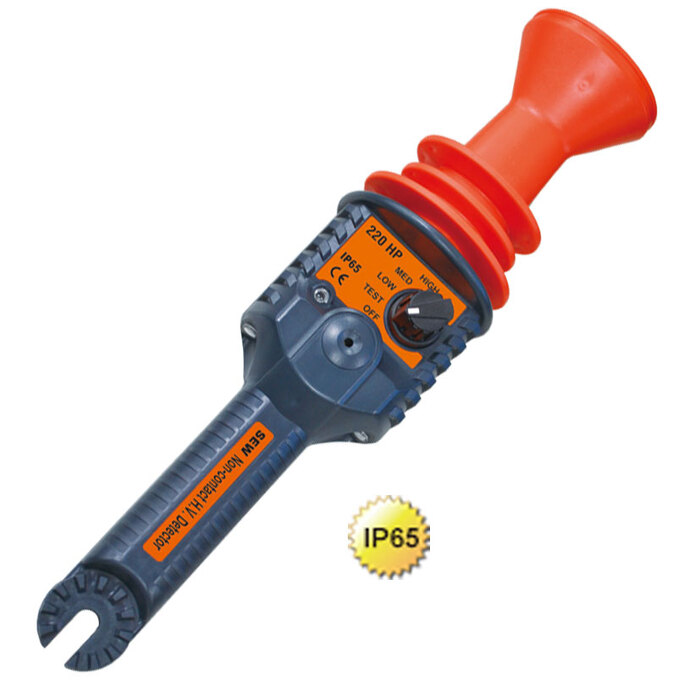

220 HP
FEATURES
- Protection class: IP65
- 3 voltage settings
Low: 100V~1.5kV
Medium: 1.5kV~33kV
High: 33kV~220kV - Bright LED visual indication
- Frequency range: 40~70Hz
- Audible indication
- Easy-to-prove method
- Self-test function
- Non-contact detection by proximity
- Compatible with most hot sticks
- Lightweight, robust and compact
- Power consumption:
OFF: 0mA
Voltage detected: 56mA approx.
SPECIFICATIONS
| Operating temperature | 0°C~40°C |
|---|---|
| Dimensions | 314(L) x 75(W) x 70.5(D)mm |
| Weight (battery included) |
Approx. 270g |
| Power source | 9V(6LF22) x 1 Alkaline battery |
| Safety standards |
EN IEC 61326-1
EN 61000-4-2 EN 61000-4-3
EN 61000-4-8
|
