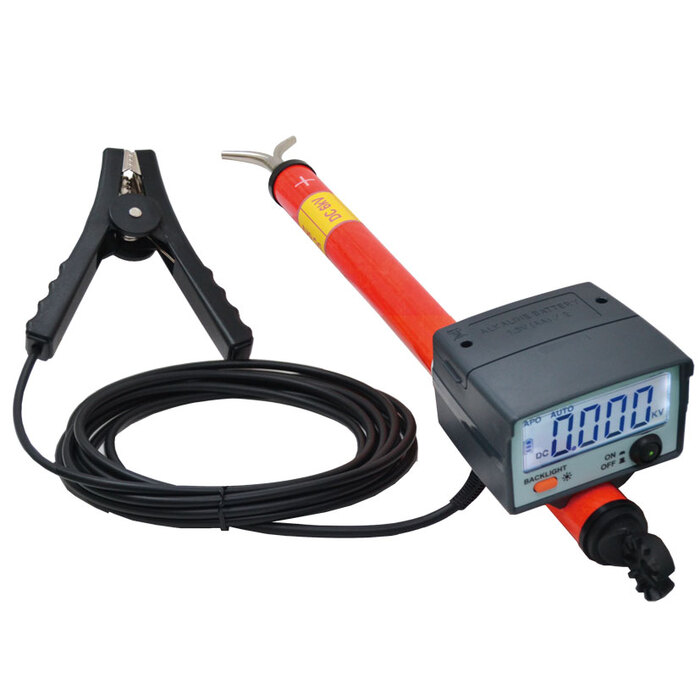

MDP-6KD
FEATURES
- DC 6kV measurement with direct reading
- 4000-count LCD
- Input impedance : 50 Mohm
- Auto-ranging : DC 4.000kV / 6.00kV
- Must be used with an approved hot stick, such as HS-175, HS-120, HS-120R.
- Backlight function
- Auto power off
- Power source : 1.5V(AA) alkaline battery × 2
- Low battery indication(Multi-level)
- Meets EN IEC 61326-1
- Protection class : IP66
SPECIFICATIONS
DC Voltage
| Range | Resolution | Accuracy |
|---|---|---|
| 4.000 kV | 0.001 kV | ±(2.0%rdg + 0.08kV) |
| 6.00 kV | 0.01 kV |
SPECIFICATIONS
| Low battery indication | √ (Multilevel) |
|---|---|
| Operating temperature & humidity | 0°C~40°C, 80% Max. |
| Storage temperature & humidity | -10°C~50°C, 80% Max. |
| Dimensions |
Master stick : 490(L) × 101(W) × 118(D)mm
Cable length : 5 meters approx.
|
| Weight (battery included) | Approx. 1080g |
| Power source | 1.5V (AA) Alkaline battery × 2 |
